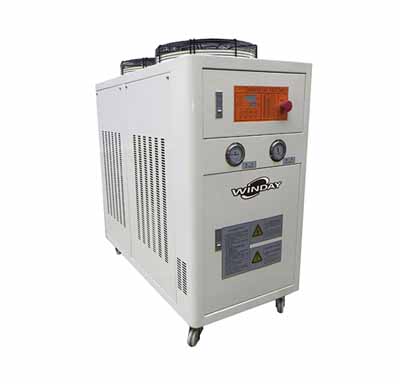

风冷式工业冷水机产品简介：
1、全新进口压缩和高效壳管式冷凝器、蒸发器组合、超强制冷、宁静省电。
2、微电脑全功能控制，操作简便。
3、独有全新设计之不锈钢开放式水缸，清洗、维修方便快捷。
4、内部管路布局合理，有效降低能耗。
5、设有精密电子温度控制器，能精确的控制水温与3℃至5℃内。
|
| 风冷式冷水机参数（1HP-10HP) | ||||||||||
| 型号/Model | UNIT | WD-LF1A | WD-LF2A | WD-LF3A | WD-LF5A | WD-LF6A | WD-LF8A | WD-LF10A | ||
| 制冷量/cooling capacity | Kw | 2.77 | 5.28 | 7.91 | 12.9 | 15.22 | 23.8 | 30.5 | ||
| Kcal/h | 2382 | 4581 | 6803 | 11094 | 13091 | 20468 | 26230 | |||
| 压缩机Compressor | 输入功率/Input power | Kw | 0.89 | 1.77 | 2.8 | 4.5 | 5.2 | 3×2 | 4.5×2 | |
| 额定功率/Rated power | Hp | 1 | 2 | 3 | 5 | 6 | 4×2 | 5×2 | ||
| 电源power | 1PH-220V/50HZ | 3PH-380V/50HZ | ||||||||
| 蒸发器Evaporator | 类型/Type | 水箱盘管式（壳管式）water tank with coil(shell and tube) | ||||||||
| 水管口径/Pie diameter | lnch | 6' | 6' | 1” | 1” | 1” | 2” | 2” | ||
| 冷冻媒体Refrigerant | 类型/Type | R22 | ||||||||
| 填充量/Quantity | Kg | 1.6 | 1.8 | 2 | 2 | 2.5 | 4 | 5 | ||
| 冷却水量/Cooling water flow | M³/h | 0.476 | 0.908 | 1.36 | 2.22 | 2.6 | 3.95 | 4.42 | ||
| 风冷冷凝器Air cooledcondenser | 类型/Type | 高效紫铜管套铝翅片式+低噪音外转子风机 | ||||||||
| Finned copper tube +low noise outer rotor fan | ||||||||||
| 风机功率/Fan power | w | 85×1 | 85×1 | 185×1 | 135×2 | 135×2 | 420×2 | 420×2 | ||
| 水箱容量/Water tank capacity | Liter | 20 | 20 | 50 | 60 | 60 | 110 | 110 | ||
| 水泵Pump | 功率/Power | Kw | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | |
| hp | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 | |||
| 扬程Distance | m | 23 | 23 | 23 | 23 | 35 | 13 | 13 | ||
| 流量/Fiow rate | l/min | 100 | 100 | 100 | 100 | 110 | 200 | 200 | ||
| 安全保护 safety protection | 压缩机过热保护，过流保护，高低压保护，超温保护， | |||||||||
| 流量保护，相序/缺相保护，排气过热保护，防冻保护 | ||||||||||
| high and low pressure protection,overload | ||||||||||
| protection,overtemperature protection,phase | ||||||||||
| sequence protection,etc. | ||||||||||
| 外形尺寸Dimensions(L*W*H) | 风冷/Air cooled | mm | 800* | 795* | 960* | 1280* | 1280* | 1550* | 1550* | |
| 490* | 566* | 630* | 630* | 630* | 830* | 830* | ||||
| 898 | 1058 | 1073 | 1118 | 1118 | 1543 | 1543 | ||||
| 运行重量Weight | 风冷/Air cooled | KG | 50 | 73 | 100 | 175 | 180 | 310 | 450 | |
| 风冷式冷水机参数（12HP-50HP) | ||||||||||
| 型号/Model | UNIT | WD-LF12A | WD-LF15A | WD-LF20A | WD-LF25A | WD-LF30A | WD-LF40A | WD-LF50A | ||
| 制冷量/cooling capacity | Kw | 34.3 | 45 | 61 | 69 | 92 | 122 | 136 | ||
| Kcal/h | 38700 | 39498 | 52460 | 59340 | 79120 | 104920 | 117476 | |||
| 压缩机Compressor | 输入功率/Input power | Kw | 10 | 4.5×3 | 9×2 | 10×2 | 9×3 | 9×4 | 9.4×4 | |
| 额定功率/Rated power | Hp | 6×2 | 5×3 | 10×2 | 12×2 | 10×3 | 10×4 | 12.5×4 | ||
| 电源power | 3PH-380V/50HZ | |||||||||
| 蒸发器 | 类型/Type | 水箱盘管式（壳管式）water tank with coil(shell and tube) | ||||||||
| Evaporator | 水管口径/Pie diameter | lnch | 2” | 2” | 2.5” | 2.5” | 3” | 3” | 3” | |
| 冷冻媒体 | 类型/Type | R22 | ||||||||
| Refrigerant | 填充量/Quantity | Kg | 5 | 7.5 | 11 | 11 | 12 | 18 | 18 | |
| 冷却水量/Cooling water flow | M³/h | 5.03 | 7.1 | 8.84 | 10.06 | 13.6 | 17.75 | 21.9 | ||
| 风冷冷凝器 | 类型/Type | 高效紫铜管套铝翅片式+低噪音外转子风机Finned copper tube +low noise outer rotor fan | ||||||||
| Air cooledcondenser | 风机功率/Fan power | w | 550×2 | 750×2 | 550×3 | 750×3 | 800×3 | 800×3 | 800×4 | |
| 水箱容量/Water tank capacity | Liter | 110 | 200 | 350 | 350 | 420 | 420 | 420 | ||
| 水泵Pump | 功率/Power | Kw | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 | |
| hp | 1 | 2 | 2 | 3 | 3 | 5 | 5 | |||
| 扬程Distance | m | 13 | 15 | 15 | 16 | 16 | 16 | 16 | ||
| 流量/Fiow rate | l/min | 200 | 360 | 360 | 650 | 650 | 700 | 700 | ||
| 安全保护 safety protection | 压缩机过热保护，过流保护，高低压保护，超温保护， | |||||||||
| 流量保护，相序/缺相保护，排气过热保护，防冻保护 | ||||||||||
| high and low pressure protection,overload protection, | ||||||||||
| overtemperature protection,phase sequence protection,etc. | ||||||||||
| 外形尺寸Dimensions(L*W*H) | 风冷/Air cooled | mm | 1550* | 1850* | 2150* | 2400* | 2600* | 2150* | 2400* | |
| 830* | 1000* | 1000* | 1150* | 1150* | 2000* | 2250* | ||||
| 1543 | 1640 | 1820 | 1740 | 1940 | 1820 | 1840 | ||||
| 运行重量Weight | 风冷/Air cooled | KG | 530 | 750 | 835 | 920 | 1080 | 1125 | 1380 | |
